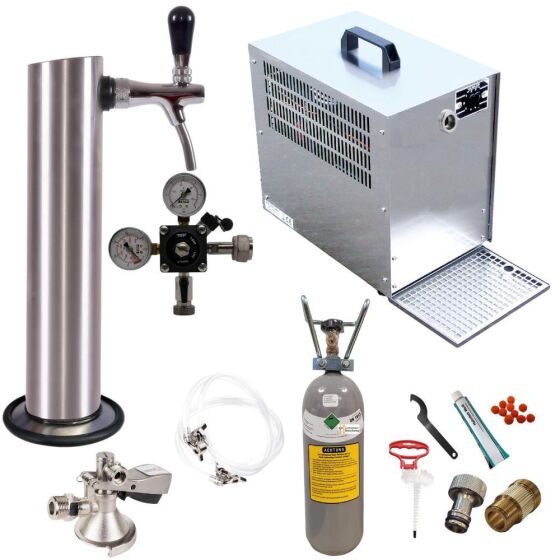

The Untertheken complete set 60l with stainless steel round tube column is a powerful and high-quality solution for the dispensing area in catering establishments or for private use. It includes an efficient dispensing system with a powerful dry cooling unit and a robust stainless steel column with a compensator tap, which has been specially developed for different types of beer. Here is a detailed description of the individual components:
Dispensing system: "Beer case" dry cooling unit (1-line, 60 liters/h)
The "Bierkoffer" dry cooling unit ensures constant cooling and is specially designed for use in the catering industry. It is perfect for larger events or for regular use in bars and pubs. With a continuous dispensing capacity of 60 liters per hour, the unit ensures that the beer is always kept at the ideal drinking temperature.
-
Tapping capacity: Up to 60 liters per hour at a temperature difference of 10° C.
-
Line diameter: 7 mm, which enables precise and even beer dispensing.
-
Cooling capacity: 660 W / 2,376 kJ/h (570 kcal), ensuring fast and constant cooling.
-
Voltage: The device operates at 230 V / 50 Hz, with a power consumption of 435 W and a current flow of 3.3 A.
-
Compressor: The 1/4 HP compressor ensures efficient cooling.
-
Housing material: The housing is made of stainless steel, which guarantees both high durability and easy cleaning.
-
Dimensions: W/D/H: 255/390/420 mm (with drip tray: 560 mm). Compact yet powerful for use under counters or in mobile dispensing systems.
The dispensing system comes with a drip tray and a compensator tap. The compensator tap is particularly important when using wheat or top-fermented beers, as it prevents the beer from foaming during dispensing and ensures even pouring.
Stainless steel dispensing column (with compensator tap)
The tap column is made of brushed stainless steel and offers both a functional and aesthetic solution for dispensing beer. It is supplied directly by the manufacturer and is therefore a high-quality product that has been specially developed for use in catering establishments.
-
Compensator tap: Required to optimize foam and flow control for beers such as wheat or top-fermented beers.
-
Mounting: The tap comes with two threaded connectors for easy mounting on a counter or worktop.
-
Beer hose and accessories: The set includes an approx. 1.50 m beer hose (7 mm) as well as a curved connector (7 mm) and hose clamps for a secure connection of the components.
-
Dimensions: The height of the tap column is 400 mm and the diameter of the column is approx. 80 mm. The base cover has a diameter of 132 mm.
Accessory set:
The set is available with various accessories that can be adapted to the user's needs.
Variant 1 "small"
-
1 x pressure reducer (1-line) with fill level indicator: The pressure reducer ensures the correct CO2 pressure control to guarantee consistent beer quality.
-
1 x keg cap of your choice: You can choose the right keg cap for your needs.
-
1 x beer + CO2 hose incl. connectors: The hose connects the tap system to the CO2 cylinder and the beer keg.
-
1 x carbon dioxide bottle 500 g incl. filling: A 500 g CO2 bottle, safely packaged for postal delivery in accordance with ADR/SV 653 regulations.
-
1 x stainless steel dispensing column with compensating tap: As described above.
Variant 2 "Drinking water carbonator cylinder 425 g conversion kit"
-
1 x special adapter with seal for drinking water carbonator cylinder: Enables the use of drinking water carbonator cylinders for CO2 supply.
-
2 x 1.5 m CO2/beer hose (7 mm clear): With SK number and connectors for a secure connection.
-
1 x pressure reducer with level indicator: As described above.
-
1 x keg cap of your choice: For various keg connections.
-
1 x soda cylinder (425 g) filled with food-grade carbon dioxide: This cylinder is widely available and suitable for standard sparkling water systems.
-
1 x stainless steel tap with compensator tap: As described above.
Variant 3 "large"
-
1 x pressure reducer (1-line): For precise CO2 pressure regulation.
-
1 x keg cap of your choice: For different keg sizes.
-
1 x beer + CO2 hose incl. connectors: For a secure connection between the components.
-
1 x 2 kg CO2 cylinder incl. filling: For longer operation and more CO2 supply.
-
1 x cleaning adapter for tap: For easy cleaning of the tap.
-
1 x keg cleaning brush: For thorough cleaning of kegs.
-
10 x cleaning sponges (7 mm): For cleaning the dispensing system.
-
1 x tube of tap grease: For regular maintenance of the tap.
-
1 x tap key: For opening and closing the tap.
-
1 x metal Gardena connector: For connecting to water pipes.
-
1 x cleaning instructions: Step-by-step instructions for maintaining the system.
-
1 x stainless steel dispensing column with compensator tap: As described above.
Summary:
The 60-liter under-counter complete set with stainless steel round pipe tap offers a high-quality and efficient solution for dispensing beer. With its powerful dry cooling system and robust stainless steel column, this set is ideal for catering establishments or private use. It ensures constant beer cooling, precise foam control and comes with all the necessary accessories to be ready for immediate use.
