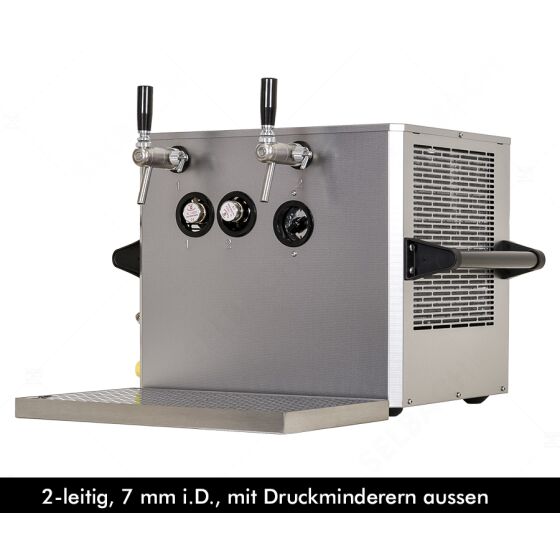

Selbach OTK BT 130 VF – 2-line high-performance dry cooling unit (ready for use)
The premier class of mobile dispensing technology: The Selbach OTK BT 130 VF is the most powerful 2-line dry cooling system in our range. As a "ready-to-use" version (Hessen type), it delivers maximum dispensing power for large events where time and quality are equally important.
When the lines at the bar get longer, the BT 130 VF is in its element. While other systems reach their limits, this powerhouse delivers up to 130 liters of ice-cold beer per hour. Thanks to dry cooling technology, there is no need for a water bath, which makes the device extremely low-maintenance and quick to set up.
The highlights of the OTK BT 130 VF in detail:
-
Maximum performance (2-line): Serve two different types of beer at the same time – with a capacity that is otherwise only achieved by large stationary systems. Separate cooling ensures that the taste of each variety remains completely authentic.
-
Ready in 5 minutes: Despite its enormous performance, the BT 130 VF is ready to tap in just 5 minutes. The solid thermo aluminum block stores the cold highly efficiently and transfers it directly to the beverage lines.
-
Fully integrated pressure control: The "Hessen type" concept means that two separate pressure reducers and two control pressure gauges are already permanently installed in the housing. You can set the dispensing pressure for each keg individually directly on the device – an invaluable advantage when serving different types of beer (e.g., pilsner and wheat beer).
-
Robust powerhouse: The brushed stainless steel housing is built for the toughest event use. Sturdy carrying handles enable safe transport despite the massive weight of 55 kg.
-
Future-proof cooling: With the environmentally friendly refrigerant R290, you can rely on sustainable energy efficiency and meet all modern environmental standards.
Technical data at a glance:
| Feature |
Specification |
| Dispensing capacity (standard*) |
130 l/h (at +18°C inlet / +8°C outlet) |
| Dispense capacity (DIN 6653-4**) |
51 l/h (at +24°C inlet / +4°C outlet) |
| Cooling capacity |
1,512 W (1,300 kcal/h) |
| Cooling type |
Dry cooling (high-performance aluminum block) |
| Ready to tap in |
just 5 minutes |
| Connection values |
230 V / 50 Hz / 4.7 A / 900 W |
| Dimensions (W/D/H) |
590 x 380 x 415 mm (depth with drip tray: 650 mm) |
| Weight |
55 kg |
Scope of delivery & configuration options:
-
Selbach OTK BT 130 VF in solid stainless steel housing.
-
Integrated pressure reducer station (2-line).
-
2x precision control pressure gauges.
-
Pre-pressure hose for CO2 supply line.
-
Attachable stainless steel drip tray.
-
Important note on pipe selection: The device is available with either a 7 mm or 10 mm inner diameter (i.D.). In the 10 mm version, the pressure reducers are installed internally to save space and protect the technology.
-
Please note: Delivery does not include taps. We recommend compensator taps with 55 mm threaded connections for this high-performance model.
Recommended use:
The BT 130 VF is the ultimate choice for professional event caterers, large sports clubs, and commercial rental companies. Thanks to its SK approval (SK 269.001), hygienic and safe operation at the highest level is guaranteed.
