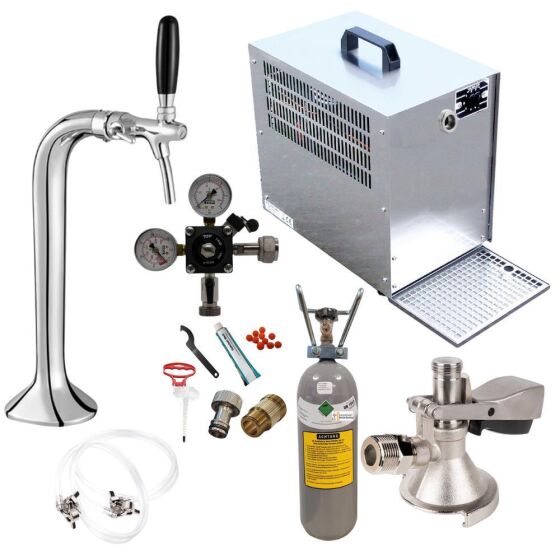

The 60-litre Untertheken complete set with Classic Elegant dispensing tower combines a powerful dry cooling system with an elegant dispensing tower that is both functional and aesthetically appealing. This set is ideal for catering establishments or discerning home users who require a continuous and efficient dispensing system. Below is a detailed description of the individual components:
Dispensing system: "Beer case" dry cooling unit (1-line, 60 liters/h)
The "Beer Case" dry cooling unit ensures constant and even cooling of the beer. It is perfectly suited to guarantee fast, continuous beer dispensing, which is particularly advantageous when there are large numbers of guests or at larger events.
-
Tapping capacity: Up to 60 liters per hour at a temperature difference of 10°C TD.
-
Line diameter: 7 mm, ideal for precise and reliable beer dispensing.
-
Cooling capacity: 660 W / 2,376 kJ/h (570 kcal). This cooling capacity ensures fast and constant cooling of the beer.
-
Voltage: The device operates at 230 V / 50 Hz with a power consumption of 435 W and a current of 3.3 A.
-
Compressor: The powerful 1/4 HP compressor ensures efficient cooling and is designed for high dispensing performance.
-
Housing material: The housing is made of stainless steel, which guarantees easy cleaning and a long service life.
-
Dimensions: W/D/H: 255/390/420 mm (with drip tray: 560 mm). The compact design allows for easy integration under counters and in confined workspaces.
The dispensing system comes with a drip tray and a compensator tap. The compensator tap is particularly useful when dispensing wheat beer or top-fermented beers, as it prevents excessive foam formation and ensures that the beer flows evenly.
Classic Elegant tap
The Classic Elegant dispensing spout is a stylish and functional solution for dispensing beer. It fits in both modern and traditional interiors and impresses with its elegant design and high-quality workmanship. The dispensing tower is robust and designed for regular use in catering establishments.
-
Line diameter: The hose with an inner diameter of 7 mm is pushed onto the stainless steel line and secured with a 1-ear clamp, which ensures a stable and tight connection.
-
Height of column without tap: 380 mm.
-
Height of column with tap: 470 mm, which ensures easy handling and comfortable tapping.
-
Base width: 120 mm.
-
Base depth: 100 mm.
-
Total depth with tap: 260 mm.
-
Height to bottom edge of tap: 280 mm.
The dispensing column is supplied with a compensator tap, which ensures even and controlled dispensing, especially for foamy beers such as wheat beer.
Accessory set variants
The 60-litre under-counter complete set is available with several accessory sets, which can be selected according to your needs and requirements.
Variant 1 "small"
-
1 x pressure reducer (1-line) with level indicator: The pressure reducer ensures the correct CO2 pressure regulation and comes with a level indicator so that the CO2 level can be checked at all times.
-
1 x keg valve of your choice: The keg valve ensures a secure connection between the beer keg and the hose.
-
1 x beer + CO2 hose incl. connectors: The hose connects the tap system to the CO2 system and the beer keg.
-
1 x carbon dioxide cylinder (500 g) incl. filling: A 500 g CO2 cylinder prepared for shipping in accordance with ADR/SV 653 safety regulations.
-
1 x stainless steel dispensing column with compensator tap: As described above.
Variant 2 "Drinking water carbonator cylinder 425 g conversion kit"
-
1 x special adapter with seal for drinking water carbonator cylinder: Enables the use of drinking water carbonator cylinders for CO2 supply.
-
2 x 1.5 m CO2/beer hose (7 mm clear): Hose with SK number and matching connections for a secure connection.
-
1 x pressure reducer with level indicator: As described in variant 1.
-
1 x keg cap of your choice: For connection to different types of kegs.
-
1 x soda cylinder (425 g) filled with food-grade carbon dioxide: This cylinder is widely available and can be used for standard sparkling water systems.
-
1 x stainless steel tap with compensator tap: As described.
Variant 3 "large"
-
1 x pressure reducer (1-line): For precise regulation of the CO2 pressure.
-
1 x keg cap of your choice: For the corresponding keg connection.
-
1 x beer + CO2 hose incl. connectors: For secure connection of the beer and CO2 systems.
-
1 x 2 kg CO2 cylinder incl. filling: A larger CO2 cylinder for longer operation.
-
1 x cleaning adapter for tap: Makes cleaning the tap easier.
-
1 x keg cleaning brush: For thorough cleaning of beer kegs.
-
10 x cleaning sponges (7 mm): For cleaning the hose systems and tap.
-
1 x tube of tap grease: For regular maintenance of the taps.
-
1 x tap key: For opening and closing the tap system.
-
1 x metal Gardena connector: For connecting to water pipes or for cleaning.
-
1 x cleaning instructions: Detailed instructions for maintenance and cleaning of the system.
-
1 x stainless steel dispensing column with compensator tap: As described above.
Summary:
The 60L under-counter complete set with Classic Elegant tap is a sophisticated dispensing system designed for regular use in catering establishments or at home. It offers a high capacity of 60 liters per hour, a compact design, and an elegant stainless steel dispensing column that is both functional and visually appealing. With a range of accessories, the set can be adapted to individual requirements and offers a complete solution for dispensing and CO2 supply.
