Reverse bend / double connector for beer lines

SKU: 18574
Category: Screw connections

Reverse bend with connection for 7 or 10 mm pipes

Variations: 10mm3,95 €

7mm3,56 €

from

3,56 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

This item has variations. Please select the requested variation.

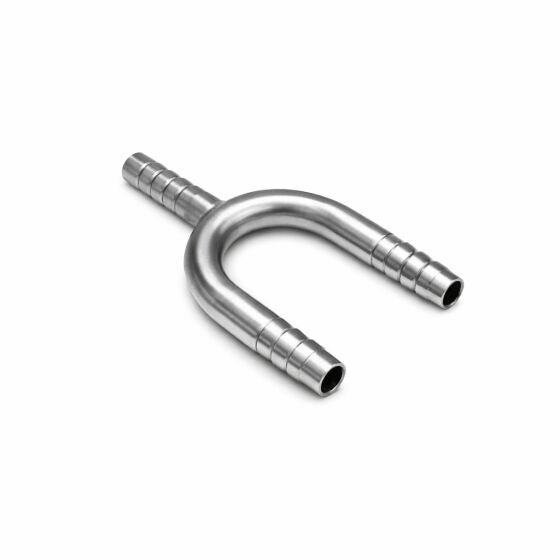

Reverse elbow with connection for CO₂ or beer lines (7 mm or 10 mm inner diameter)

The reverse elbow with connection for CO₂ or beer lines is a specially developed connecting element in beverage and dispensing technology. It is used to redirect flexible hoses or line systems cleanly and safely in tight installation situations – typically by 180 degrees – without risking kinks or mechanical stress on the lines.

This component is particularly useful when the line needs to be returned, rotated, or laid in a space-saving manner—for example, in cold rooms, counters, cleaning circuits, or on keg connections.

Function and design

The reverse elbow allows the line to be redirected by 180° without the hose kinking, bending, or being squashed. This not only optimizes the flow of gas or liquids, but also increases the service life of the connected hoses. At the same time, the deflection contributes to structured, safe, and tidy installation.

The component has a so-called neck, i.e. a cylindrical insertion zone that ensures a secure hold in the hose and can also serve as a contact surface in a seal or socket.

Material

High-quality brass:
The component is made entirely of solid brass – a proven material in beverage technology. Brass is:
- corrosion-resistant to moisture, CO₂, and cleaning agents
- food safe
- pressure-resistant and mechanically robust
- very easy to machine for precise transitions and fits

Thanks to these properties, the reverse elbow is suitable for both permanent installation and temporary use in service or cleaning applications.

Variants and sizes

The reverse bend is available for two common pipe systems – matched to the inner diameter of the hoses:

Hose size (inner diameter)	Typical outer diameter	Application
7 mm	approx. 12 mm	CO₂ or beer lines (standard)
10 mm	approx. 16 mm	Higher flow rates, cleaning

Important: The nominal width of the nozzle or connection must be precisely matched to the respective inner diameter of the hose. This is the only way to ensure a tension-free, secure, and tight connection.

Typical applications

Return of beverage lines in cleaning systems
Hose routing behind barrels, in cold rooms or counters
Space-saving installation in tight installation conditions
Creation of closed rinsing or CO₂ circuits
Hose routing for mobile counters or temporary installations

Advantages at a glance

180° bend to prevent hose kinking or too tight radii
With attachment for secure fit in the hose or for mounting with clamp
Made of brass – durable, robust, hygienic
Compatible with 7 mm or 10 mm inner hose diameter
Facilitates professional, structured installation of CO₂ and beer lines
Ideal for permanent installations and cleaning circuits

Installation instructions

The hose should be placed in warm water for a short time before connecting to make it more elastic.
A suitable hose clamp is recommended to secure the connection.
Ensure a correct fit – a nozzle that is too tight can damage the hose, while a nozzle that is too loose will cause leaks.
