Polymaid seals eg for MicroMatic pressure reducers 100 pieces

SKU: 31650-001
GTIN: 4251943205038
Category: Screw connections

Variation

16,07 €

incl. 19% VAT , plus (DHL Paket)

Choose tax zone / country of delivery

Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Split quantity allowed for this item (e.g. 0.5).

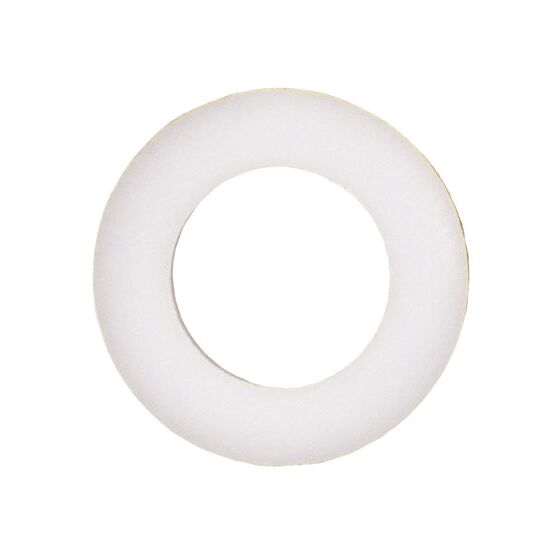

Polyamide seals 11.8 x 18 x 3.7 mm

High-quality plastic seal for CO₂ applications, ideal for pressure regulators, e.g. from Micromatic

These flat-sealing polyamide seals with an inner diameter of 11.8 mm, an outer diameter of 18 mm and a thickness of 3.7 mm are specially designed for use in beverage technology – in particular for sealing CO₂ lines, Pressure reducers, or hose screw connections, as are commonly found in professional dispensing systems or in the catering industry.

Application examples:

As a seal between CO₂ pressure regulators and screw connections, e.g. from Micromatic
For flat-sealing connections on threaded flange connections
Universally applicable in the field of pressurized gas technology, CO₂ lines, and beverage supply

Technical details:

Material: polyamide (PA)
Inner diameter (ID): 11.8 mm
Outer diameter (OD): 18 mm
Thickness: 3.7 mm
Shape: Flat gasket / flat washer
Hardness: robust and pressure-resistant
Color: natural white or translucent
Pressure resistance: suitable for CO₂ pressure ranges
Temperature resistance: –20 °C to +80 °C (briefly even higher)

Properties:

Food safe and hygienic – approved for use in contact with CO₂ and beverages
Dimensionally stable under pressure, no swelling or shrinkage when used properly
Resistant to carbon dioxide and pressurized gas mixtures
Good resistance to fats, oils, and cleaning agents
Easy to install and quick to replace if necessary

Packaging units (PU):

1 piece – for individual use or targeted maintenance
10 pieces – as a stock for smaller installations or replacement requirements
100 pieces – for large consumers, workshops, or plant manufacturers

Instructions for use:

The seal is placed between the two flat sealing surfaces (e.g., threaded flange of a pressure reducer and connection piece).
Ensure that the seal is seated flat and that the surface is clean and free of grease.
Tighten the connection by hand or with a suitable tool without damaging the seal.
Always check the condition of the seal during maintenance or disassembly – a brittle or damaged seal must be replaced.
