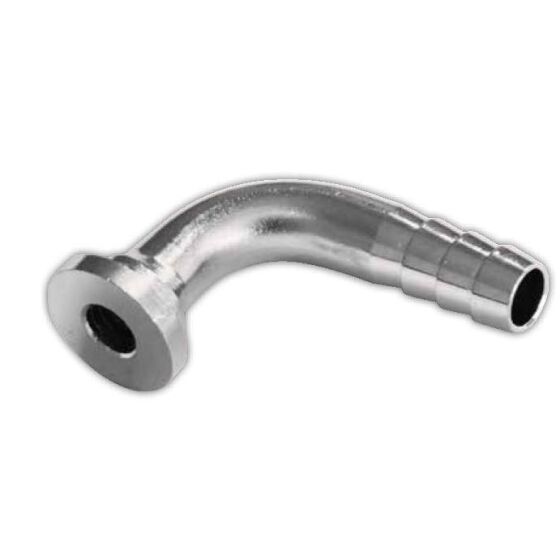

Beer hose nozzle bent flat sealing 90° 7mm

SKU: 23428-001
GTIN: 4251943207292
Category: Screw connections

Variation
Variation 2

0,30 €

incl. 19% VAT , plus (DHL Paket)

Old price: 2,04 €

Choose tax zone / country of delivery

Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Beer hose nozzle, flat seal – brass

For secure, hygienic hose connections on 5/8" connections

The flat-sealing brass beer hose nipple is a proven solution for connecting beverage lines to standard 5/8-inch threaded connections. Thanks to its flat-sealing design in combination with a separately available seal, it provides a reliable and leak-free connection in dispensing systems and other beverage technology applications.

Product features:

Material:
Made of high-quality brass – robust, durable, and corrosion-resistant
Suitable for use with beer, water, and CO₂-containing beverages
Connection type:
Flat seal – sealing is achieved via an inserted flat gasket (not included)
Suitable for all standard wing nuts with 5/8" thread
Hose connection sizes:
- For hoses with an inner diameter of 7 mm (e.g. 7 x 12 mm)
- For hoses with an inner diameter of 10 mm (e.g. 10 x 15 mm or 10 x 16 mm)
Design:
Smooth-surface nozzle with precise geometry for optimum hold in the hose
Can be used with both straight and curved hoses
Suitable for permanent use with 1-ear clamps or hose clamps

Installation instructions:

Insert seal:
The grommet is flat sealing, which means that a suitable flat gasket (clear or black, food-grade) must be inserted into the wing nut before installation to ensure a tight seal.
Hose assembly:
The beverage hose should be slightly warmed (e.g., with warm water) for installation to make it easier to slide on. Then push the grommet firmly into the hose.
Securing:
For safety reasons, we recommend using a suitable hose clamp (e.g., 1-ear clamp) and tightening it over the grommet area.

Important note:

It is essential to use a suitable flat gasket to ensure a reliable seal between the grommet and the threaded connection. The grommet itself is not self-sealing.
