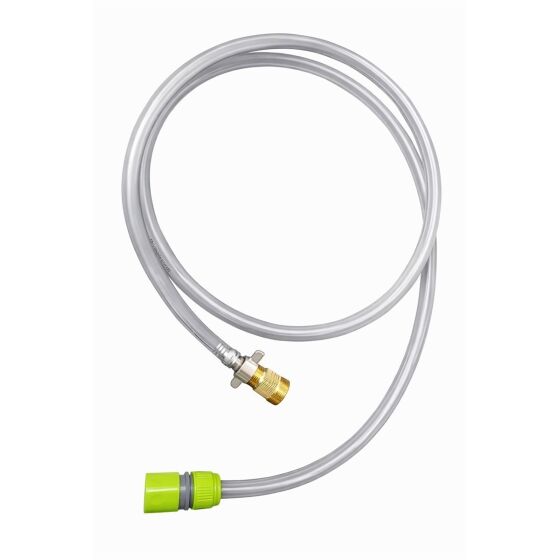

Rinse hose / cleaning hose for beverage dispensing systems
This high-quality cleaning hose set is ideal for efficiently rinsing and cleaning beverage lines in dispensing systems. It enables easy and thorough cleaning using water pressure and cleaning sponges to remove beer stone, deposits, and impurities from the lines.
Product features:
data-end="710"Material: 10x15 mm robust cleaning hose
/Nozzle: 10 mm with 5/8" cap for secure hold
/Fastening: Includes a hose clamp for 10 mm hoses
/Seal: Suitable for nozzles to ensure a tight connection
/Connection options:
-
Aerator thread (M22x1 mm) for standard water taps
-
1/2" tap connector (e.g. Gardena compatible) for garden hose connections
-
Under-sink pipe connection for commercial mixer taps and cold water taps
/Hoses: Available in 2 m or 4 m
/Cleaning adapter: Available in 28 mm or 30 mm to fit various tap handles
Notes on adapter selection:
To ensure that the cleaning adapter fits your tap perfectly, determine the required size as follows:
1?Loosen the front part of the tap at the ring nut.
2?Measure the outer diameter of the front partyou removed.
3?Alternative method: Check the front part of the tap for an embossed or stamped SK or SL number.
?? A list of SK numbers from various manufacturers is attached below
Application – How cleaning works:
Remove the front part of the tap: This applies to modern taps with a removable front part.
Attach the cleaning adapter: The adapter is screwed on.
Disconnect the beer hose from the keg: Place the end of the hose in a bucket to catch the liquid that flows out.
Connect the rinsing hose to the tap:
- For catering taps: Connect to the under-sink pipe
- For normal taps: Use a tap thread (M22x1 mm)
- For domestic water pipes: Use a Gardena-compatible adapter
Insert cleaning sponge
- Select the appropriate size (4 mm, 6.7 mm, 7 mm, or 10 mm/not included)
- Press the sponge into the cleaning adapter.
Turn on the water pressure
- Connect the wing nut to the cleaning adapter
- Turn on the water tap so that the cleaning sponge is pressed through the pipe.
Repeat the process
-
Repeat the cleaning process at least 3 times to ensure thorough rinsing.
data-end="2834"Done! Your beer lines are now professionally cleaned and ready for use
SK 28mm
- 009.023 Hiwi ball valve
- 009.024 Hiwi piston/compensator tap after 1995
- 016.054 Micro Matic ball valve with teeth
- 016.077 Micro Matic piston valve after 1995
- 016.079 Micro Matic compensator ball valve
- 016.080 Micro Matic compensator valve after 1995
- 020.029 Fuge-Welt piston valve
- 020.032 Fuge-Welt compensator tap
- 083.035 Cornelius piston/compensator tap (BT150 / BT200)
- 083.079 Cornelius
- 168.007 Model Speedy X
- 168.009 Wine tap
- 168.012 Model V10
- 168.013 Model V20
- 196.002 Zerfass piston/compensator tap with stainless steel compensator after 1999
- 196.003 Zerfass compensator tap
- 265.014 Ball valve
- 301.001 Antoine ball valve
- 305.001 Maks piston/compensator valve after 1997
- 305.002 Maks
- 311.001 Compensator valve
- 335.001 VVB ball valve
- 343.025 Piston/compensator valve
SK 30 mm
- All tap valves from GDW
- SL 409-001 - Compensator tap from Lindr
- SL 482008 – compensator tap from Lindr
- 020.054 – Fuge-Welt piston tap
- 020.055 – Fuge-Welt compensator tap
- 083.011 – Cornelius
- 083.035 (BT 50) – compensator tap
- 196.002 – Piston/compensator tap before 1999
- 240.001 – Celli piston/compensator valve
- 255.001 – Compensator valve
- 267.005 – Intersystec piston/compensator valve
- 287.001 – IPS piston/compensator valve
- 306.001 – FAS piston/compensator valve
- 311.001 – TOF piston/compensator valve
- 339.001 – Piston/compensator valve
- 343.023 – Piston/compensator valve
